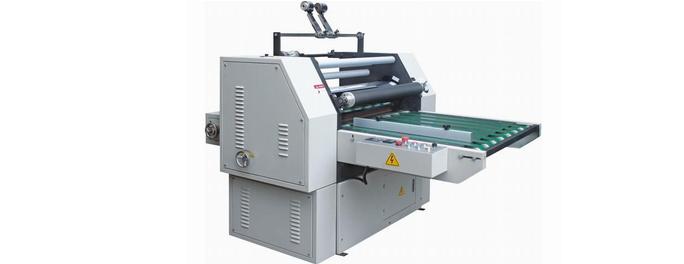

FMYS Series Manual Oil Heating Film Laminating Machice
The machine adopts thermal film as laminating material; adopts oil-heating system to control temperature which is more even. The machine composed of manual feeding, hydraulic pressure laminating, auto winding for single face film laminating.
型号
|
Model
|
FMYS-720
|
FMYS-920
|
FMYS-1200
|
覆膜宽度
|
Laminating width
|
650mm
|
850mm
|
1150mm
|
覆膜速度
|
Laminating speed
|
0-30m/min
|
0-30m/min
|
0-30m/min
|
电机功率
|
Motor power
|
0.75kw
|
1.5kw
|
2.2kw
|
电热功率
|
Heating power
|
5kw
|
6kw
|
7kw
|
覆膜温度
|
Laminating temperature
|
60-130℃
|
60-130℃
|
60-130℃
|
适用纸张
|
Paper weight
|
80-600g/m2
|
80-600g/m2
|
80-600g/m2
|
机重
|
Weight
|
0.35t
|
0.55t
|
0.8t
|
外型尺寸
|
Overall dimension
|
1900x1150x1300mm
|
1900x1400x1300mm
|
1900x1700x1300mm
|
